H2

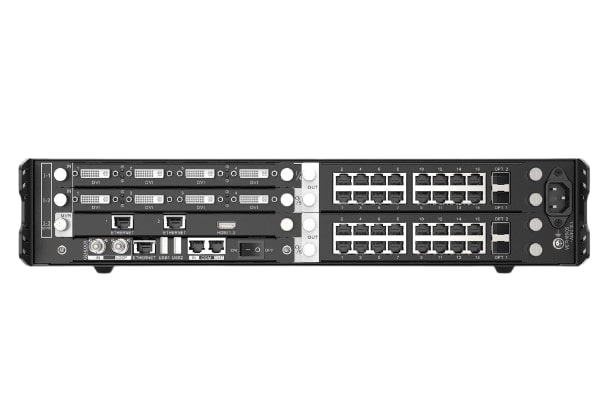

Video Splicing Processor
Hardware Features: • Two different types of 4K Sending Cards available: H_20xRJ45: Manages up to 13 million pixels. H_16xRJ45: Manages up to 10.4 million pixels (including 2x OPT-Out). • Different configurations possible on one Sending Card: 4x 2K × 1K@60 Hz. 2x 4K × 1K@60 Hz. 1x 4K × 2K@60 Hz. • Online monitoring for all input and output cards. • "Hot-Swap" function for all input and output cards. • IP input card H_2xRJ45 supports up to 100 IP cameras, including input mosaic. • Automatic decryption of HDCP-protected sources. • Multi-screen management. • Web control. Specifications: • Maximum number of input cards: 4. • Maximum number of input channels: 16. • Maximum number of output cards: 2. • Maximum loading capacity: 26,000,000 pixels. • Maximum number of layers: 32. General Specifications: • Supply voltage: AC 100 - 240V, 50/60 Hz. • Power consumption: 210 watts. • Dimensions: 482.6 × 88.1 × 455 mm (W × D × H). • Weight: 15.6 kg.
